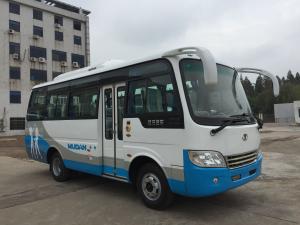

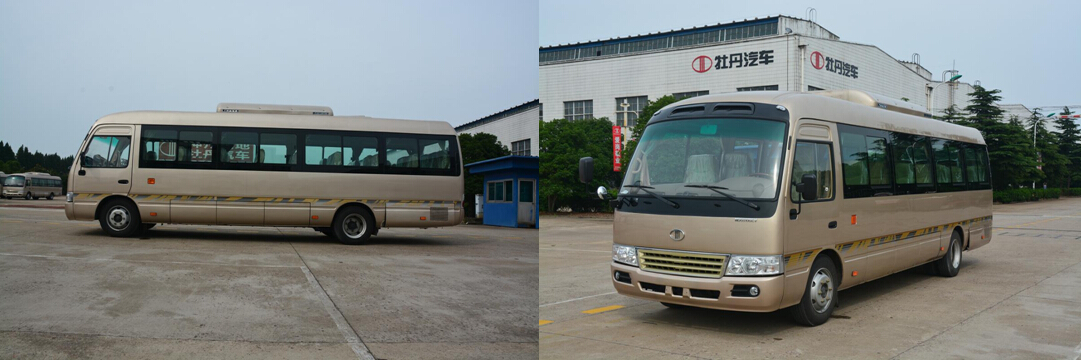

SKD / CKD Diesel Mini Bus 19 Seater Minibus Public Service 3300mm Wheel Base
Quick Details:
A: Isuzu technology engine HFC4DA1
B: 10~ 25 seats
C: 6.6 meter Star type
Description:
Center undertakes product planning, vehicle design, assembly part design, prototype, test and inspection, standards and regulations, intelligence information, intellectual property and patents, process improvement, technological innovation and new technologies, new technology promotion and application tasks. Product design realize from 2D to 3D development. The chief engineer is responsibility of technology Center. The thief engineer is the leading of the center, project engineers, engineers, assistant engineers, technicians are graded responsible manner to improve the design and develop the lightweight body design and exterior acceleration noise .The research are repeatedly won the Suzhou municipal technology innovation, research and other awards .
Engine installed are all proved to be of stable & quality by domestic market. Like Cummins engine,Yuchai engine ,Isuzu technology engine from JMC and so on !
All vehicles are treated with cathode electrophresis,which highly imporved the vehicle corrosion resistance.
Specification:
| Model | MD6668 |
| Overall Dimension | Length (mm) | 6,600 |
| Width (mm) | 2,260 |
| Height (mm) | 2,830 |
| Wheel base (mm) | 3,300 |
| Vehicle Weight | Curb (kg) | 3,220 |
| Gross (kg) | 6,500 |
| Seating capacity | Pcs | 10~25 |
| Fuel tank (L) | 85 |
| Tires | Quantity | 6+1 |
| Size | 7.00-16 |
| Engine | Model | HFC4DA1-2B2 |
| Emission Level | Euro II |
| Manufacturer | JAC |
| Displacement (cc) | 2771 |
| Max. power (hp/rpm) | 120/3,600rpm (88kw/3,600rpm) |
| Max. torque (Nm/rpm) | 280/2000~2200 |
| Gearbox | LC5T30 |
| Brake | Air brake |
| Body Structure | All metal type, semi-integral body |
| |
| Standard Configuration |
| 1. Laminated front windshield & tempered rear windshield |
| 2. Aluminum sliding side window & metal bracket rear view mirror |
| 3. One Manual folding passenger door |
| 4. Sunroof |
| 5. normal sofa seat,2+2 layout, safety belt, |
| 6. PVC floor |
| 7. MP3 player, 2 speakers |
| 8. Defrosting system for front windshield |
| 9. Rear luggage box |
| 10.Normal interior |

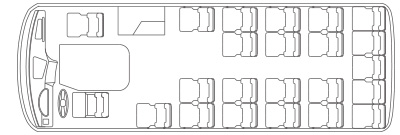

Seats layout:
Option: A: 22 +1 ,
option B : 24+1
