Passenger Vehicle school chassis Buses Mitsubishi minibus Cummins Engine
Quick Details:

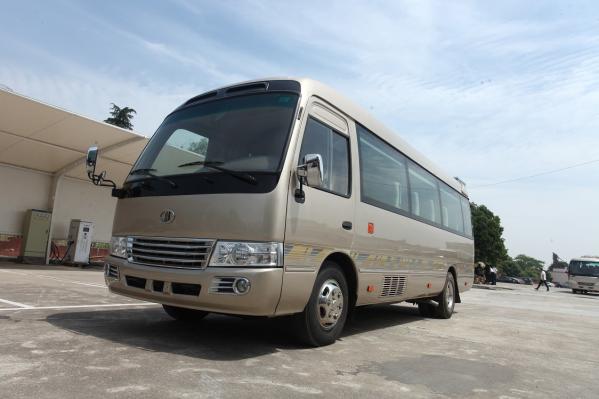

1: Coaster type diesel Mini bus
2: 29 seats capacity
3: 7 meter length
4: Cummins engine EQB125-20
5: Emission:Euro 2/3/4
6: ENGINE:YUCHAI
Description:
The outstanding design comes from original mitsubhishi Rosa, By top level of accurate point welding & argon-arc welding technology, body pieces made by high-precision mould from Taiwan are welded together into a shell structure.
Vehicles are all treated with cathode electrophresis ,which highly improve the vehicle corrosion resistance.
Center undertakes product planning, vehicle design, assembly part design, prototype, test and inspection, standards and regulations, intelligence information, intellectual property and patents, process improvement, technological innovation and new technologies, new technology promotion and application tasks.
Specification:
| Model | MD6700 |
| Overall Dimension | Length (mm) | 7,000 |
| Width (mm) | 2,050 |
| Height (mm) | 2,660 |
| Wheel base (mm) | 3,935 |
| Vehicle Weight | Curb (kg) | 4,150 |
| Gross (kg) | 5,500 |
| Seating capacity | Pc | 29 seats capacity |
| Fuel tank (L) | 70 |
| Tires | Quantity | 6+1 |
| Size | 7.00R16 |
| Engine | Model | EQB125-20 |
| Emission Level | Euro II |
| Manufacturer | Cummins |
| Displacement (cc) | 3,800 |
| Max. power (hp/rpm) | 125/2800 (92kw/2,800rpm) |
| Max. torque (Nm/rpm) | 410/1500 |
| Gearbox | QUJIANG QJ5S500 |
| Brake | Air brake |
| Body Structure | All metal type, semi-integral body |
| |
| Standard Configuration |
| 1. Laminated front windshield & tempered rear windshield |
| 2. Aluminum sliding side window & metal bracket rear view mirror |
| 3. One driver door, one manual folding passenger door |
| 4. normal seat,2+2 layout, adjustable driver seats(back is adjustable) |
| 5. Sunroof |
| 6. PVC floor |
| 7. MP3 player, 2 speakers |
| 8. Defrosting system for front windshield |
| 9. Rear luggage box |
| 10. A/C interior |
Application:
1, Public transportation; 2, Tourism mini bus; 3, City bus; 4, School bus
